AS-OCF Patterns

OCF Patterns at 50 feet (15.24 m) high, horizontal installation. The longer leg (90 ft or 27.43 m) is along the positive Y-axis.

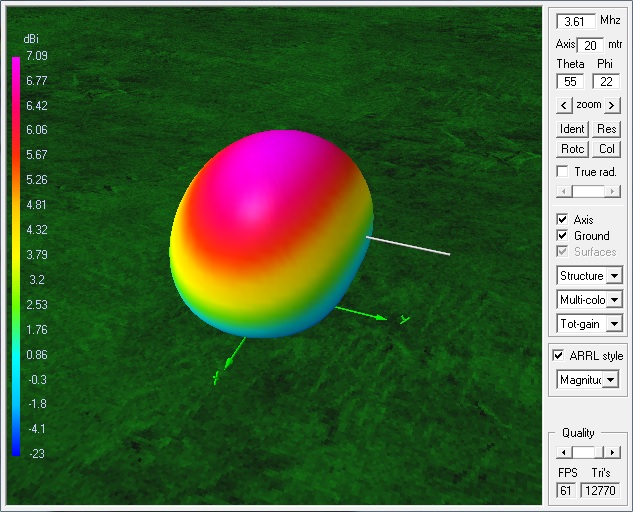

OCF 3-D pattern at 3.6 MHz

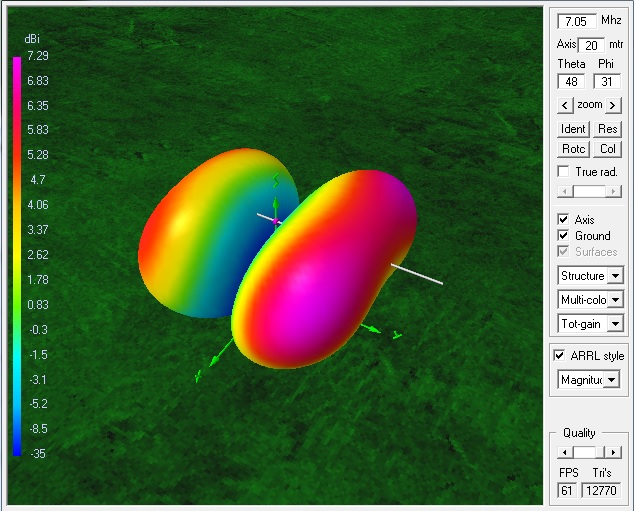

OCF 3-D pattern at 7 MHz

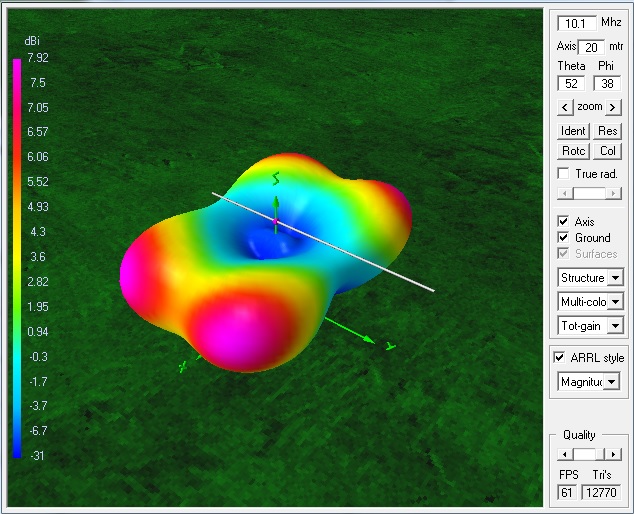

OCF 3-D pattern at 10.1 MHz

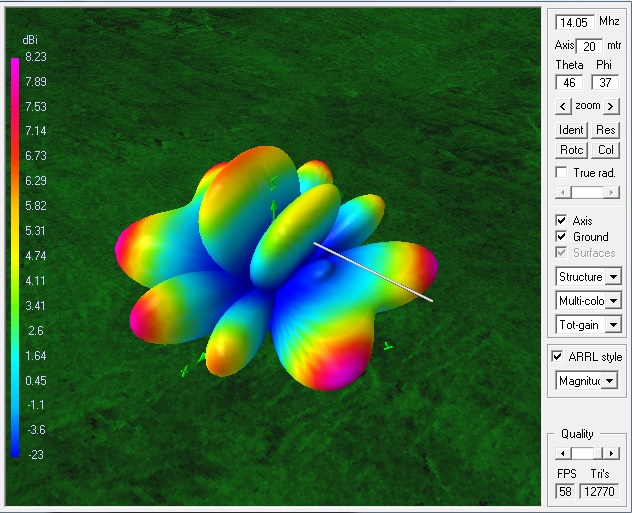

OCF 3-D pattern at 14 MHz

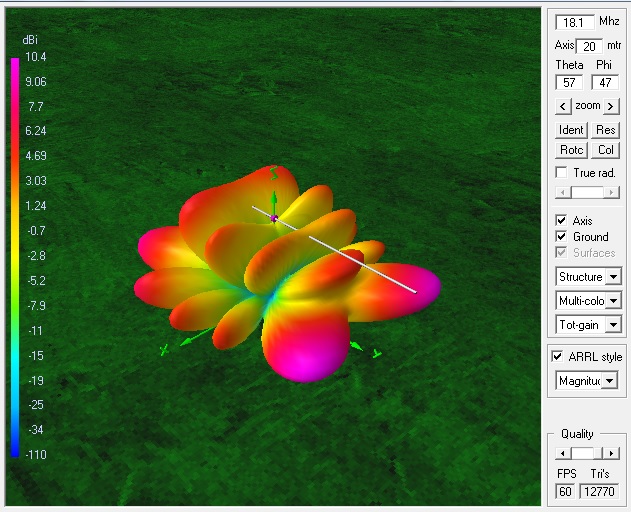

OCF 3-D pattern at 18.1 MHz

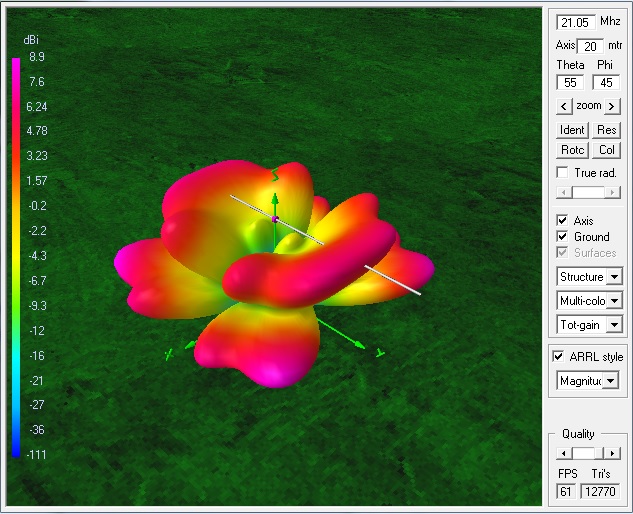

OCF 3-D pattern at 21 MHz

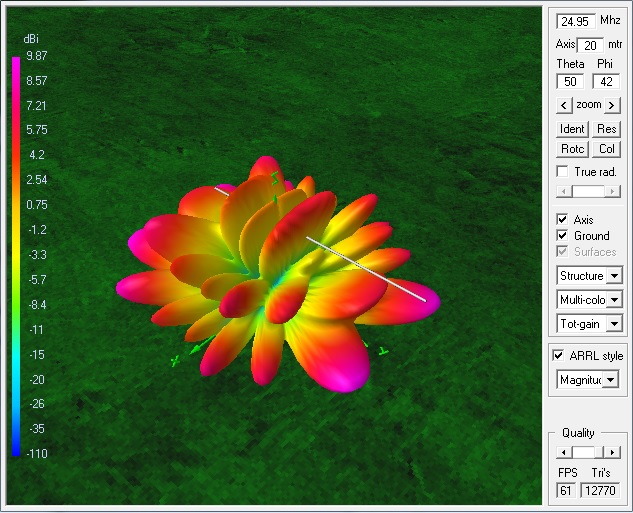

OCF 3-D pattern at 24.9 MHz

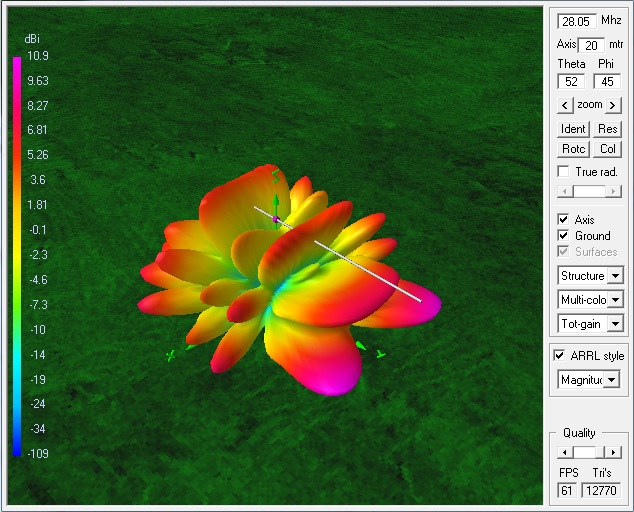

OCF 3-D pattern at 28 MHz

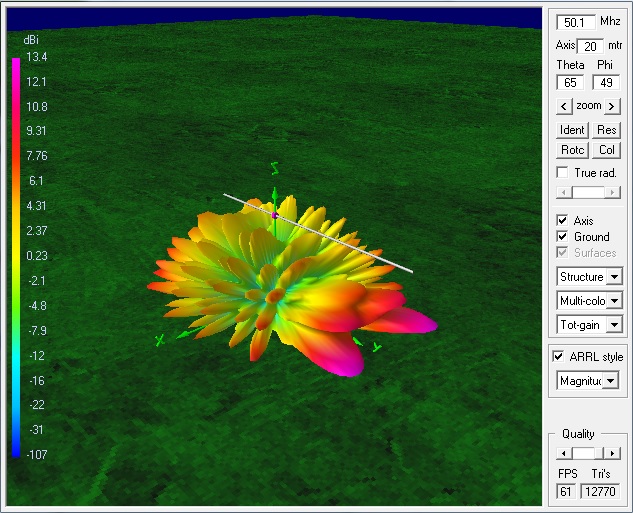

OCF 3-D pattern at 50 MHz
