NOS now available. Call for price and to order.

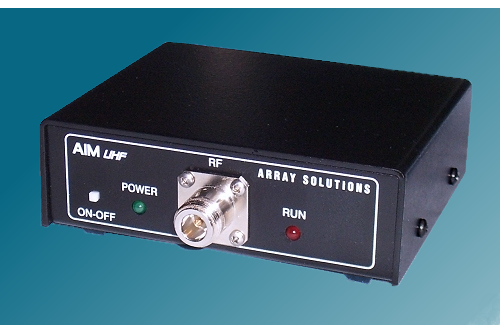

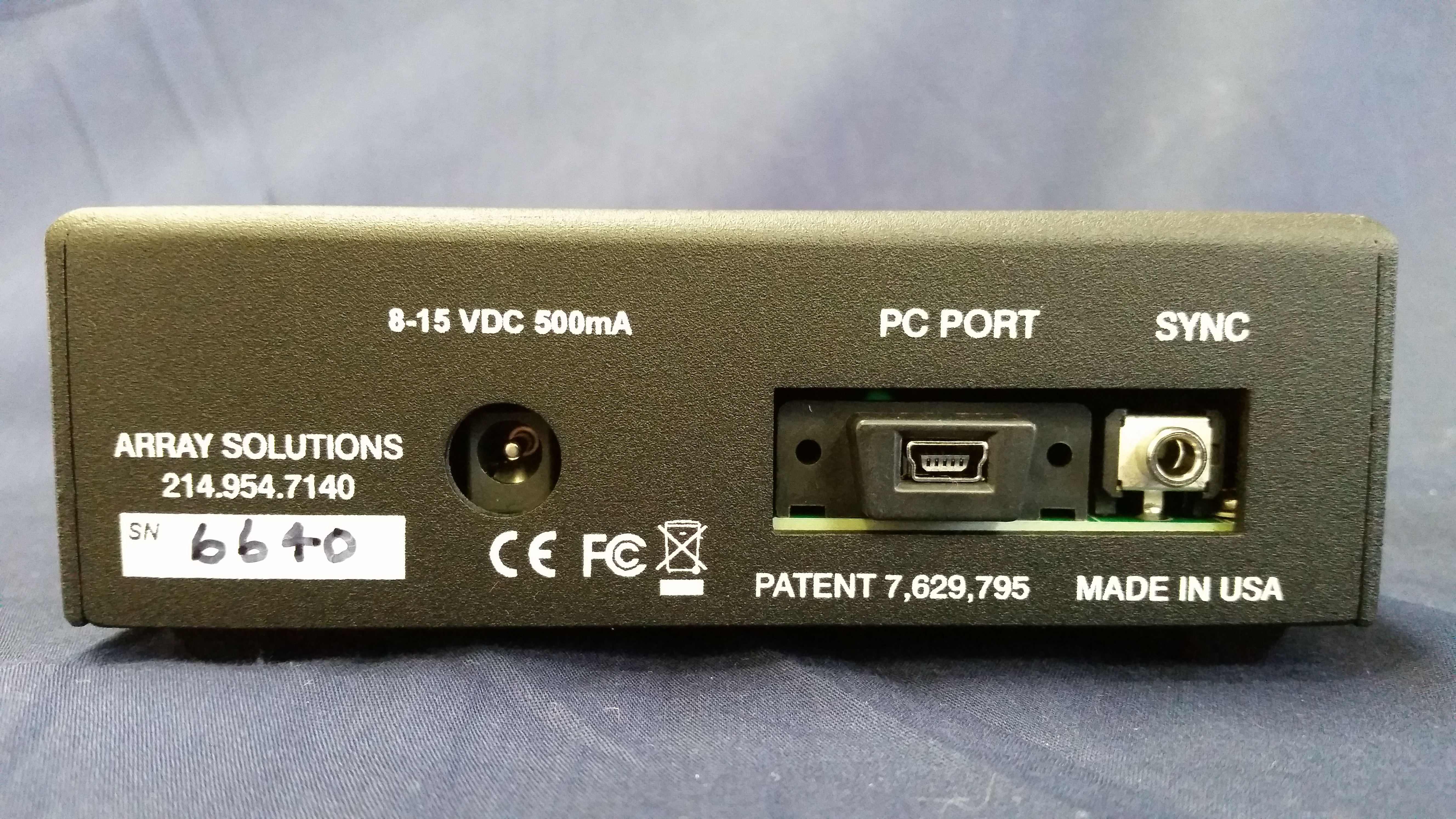

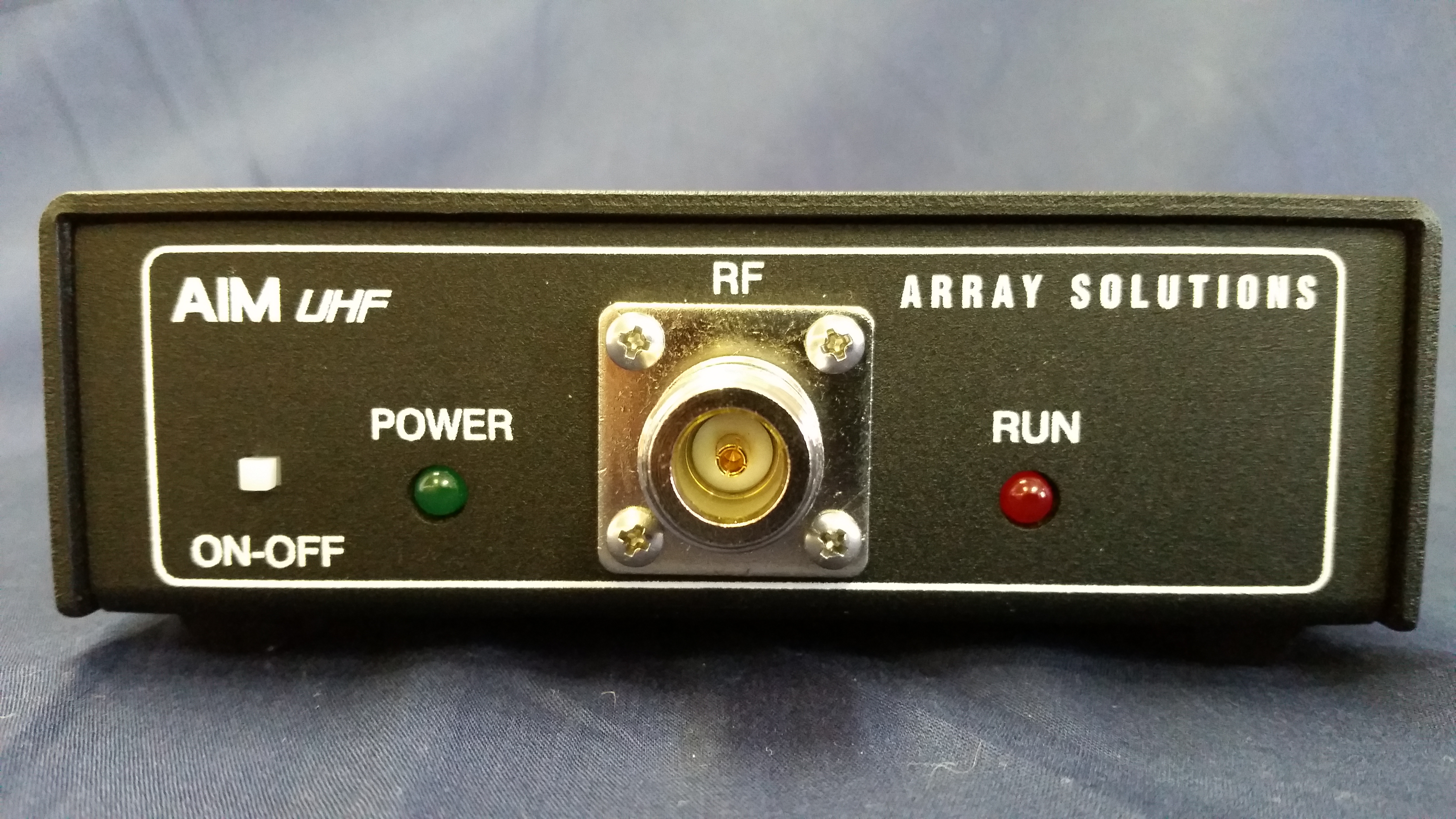

AIM UHF Antenna Analyzer with 120 V AC 60 Hz Power Supply for use in USA, USB Cable, and calibration loads.

Features:

• Frequency range 5 kHz to 1 GHz
• Temperature Compensated Oscillator (TCXO)
• Scan averaging up to 256x
• Type-N RF connector
• Heavy duty case available
• Expansion port for accessories The standard AIM UHF package includes:
• AIM UHF antenna analyzer
• 120 V AC 60 Hz "wall-wart" power supply
• Calibration hardware: open, short, & 50 ohm resistor N-type loads, USB cable
• Printed quick start guide
• Free software updates Download the latest version from W5BIG's website now [opens a new window])
• PPT presentation of capabilities http://homepage.ntlworld.com/wadei/aim4170.htm Remember to come back! Some of the RF parameters that are calculated include the following:
• SWR referenced to any impedance
• Resistance and reactance (R+jX) at the cable input
• Resistance and reactance (R+jX) at the antenna terminals
• Resistance and reactance (R+jX) of discrete components
• Return loss (RL or S11)
• Reflection coefficient (Γ)
• Cable length
• Cable impedance (R+jX)
• Cable loss
• Distance to fault (Open, short or impedance discontinuity)
• Smith Chart display
• Quartz crystal parameters
• True TDR (Time Domain Reflectometer)

Click for more detailed specs (will open a new page on W5BIG's website)

How good is the TDR?

Don't forget the optional protective case for your AIM UHF analyzer.
The case uses a water-jet custom cut high density foam insert in a sturdy black molded locking shell. There are cutouts for your calibration loads and adapters as well as the Power Supply and the USB cable.

AIM-UHF shown here in its Pro-Case (Case, battery and its charger not included, order separately)

We DO NOT ship a software CDROM with the analyzer.

*Note: you may download the software for the AIM UHF now and it will work in "demo" mode until your AIM UHF Arrives.

Setting the AIM up with a tablet, click here

Note -  CIRCUITS AND PROCEDURES used by this antenna analysis system are covered by US Patent No. 7,629,795
