Pro.Sis.Tel. Rotators



Pro.Sis.Tel. Rotators



Pro-Sis-Tel Family

PST641



The BIG BOY line of rotators is the latest generation of antenna rotators using advanced worm gear design technology, computer control and 100% solid state components. From the commercial and amateur overseas market comes a professional line of commercial rotators designed to perform under tremendous stress and abnormally heavy antenna loads of up 81 sq.ft. (perfect for those 80 meter beams, big boom log periodic arrays, large stacked arrays or turning a full rotating tower). Using nickel chromium molybdenum hardened steel alloy BIG BOY rotators have incredible torque resistance achieved by the heavy duty UL and CE rated motor and superior double worm gear design.

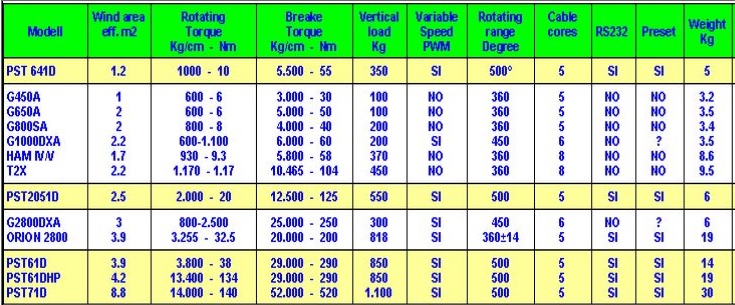

The Prosistel advanced worm gear design is simple yet exceptionally strong and less complicated than ANY OTHER rotator manufactured. The braking, rotating and starting torque specifications surpass ANY rotator out on the market today (see rotator comparison chart). The BIG BOY has such strength and durability that all Prosistel rotators including the military series are backed up by a two year warranty.

Make no mistake, THIS IS A COMMERCIAL GRADE ROTATOR now available to amateur radio operators at competitive prices.

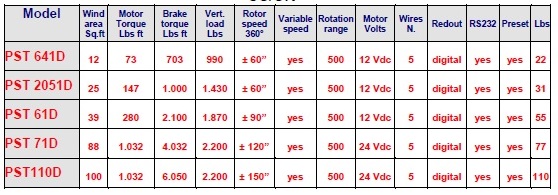

Specifications

These numbers are calculated numbers Actual selection should be made with these numbers and your experience.

We are more than happy to assist and advise you on size selection.






Gears



Controller Options

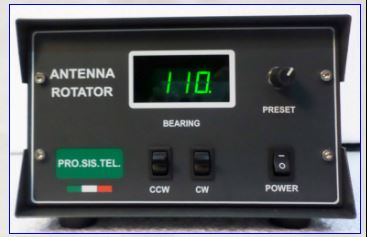

Pro.Sis.Tel controller

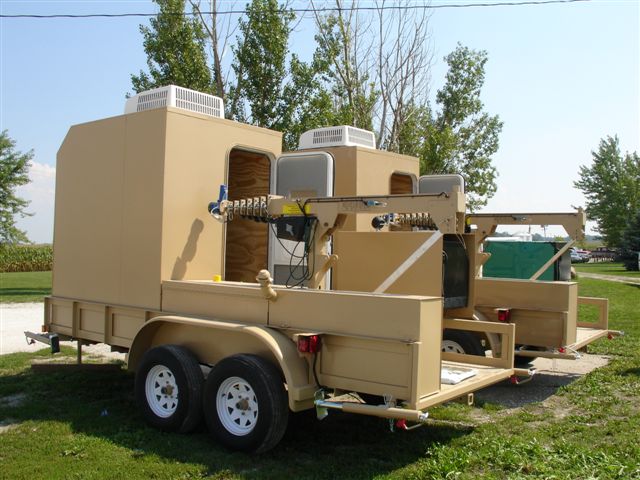

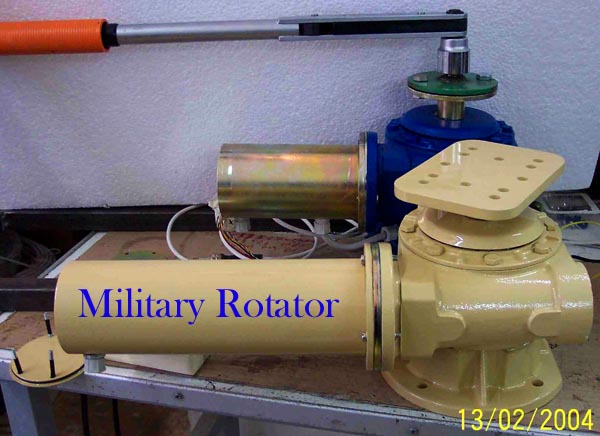

Military Versions

Rotators can be ordered with custom color paint or no paint depending on your needs.


Links to models and Pro.Sis.Tel webpage

User's Manuals Downloads:
D-Controller User Manual, click here
PST-641 and PST-2051 User Manual, click here
PST-61 - PST-71 and PST-110 User Manual, click here

To see more of the PST-110D, click here
To see more of the PST-71D, click here
To see more of the PST-71, click here
To see more of the PST-61D, click here
To see more of the PST-61, click here
To see more of the PST-641D, click here
To see more of the PST-641, click here
To see more of the PST-2051D, click here
To see more of the PST-2051, click here

Procedure to change the potentiometer in D models (DC Motors), click here
Procedimiento para cambiar el potenciĆ³metro en modelos D (Motores de corriente continua - DC), click aquĆ­


To download a zip file with the V3.23 software and manuals click here
